Hertz

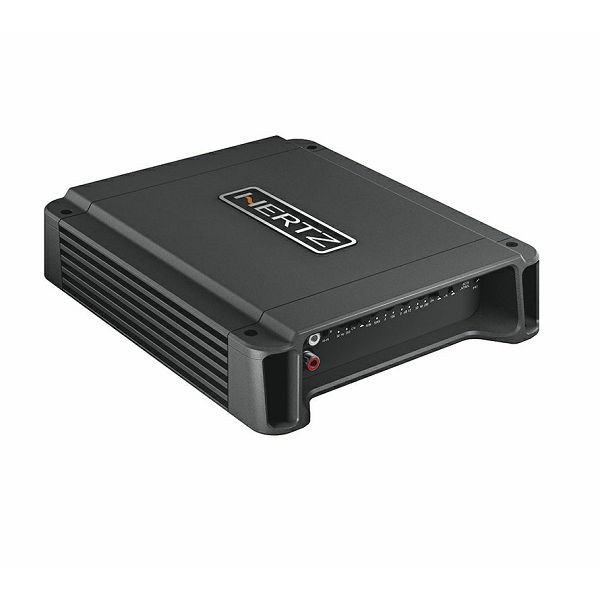

Pojačalo HERTZ Compact Power HCP 1D

Specifikacije(Engl):
Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 25 A
Idling current (power ON/OFF): 1 A / 0.04 mA
Consumption @ 2 Ohm-a, 14.4 VDC (Max Musical Power): 25 A
Remote In: 7 ÷ 15 VDC - 1 mA
Distorsion - THD (100 Hz @ 4 Ohm-a): 0.2 %
Bandwidth: 10 ÷ 22k Hz
S/N Ratio (A weighted @ 1 V): 100 dB
Damping factor (100 Hz @ 4 Ohm-a): 80
Pre-In sensitivity: 0.6 ÷ 5 VRMS (15 k Ohm-a)
Speaker-In sensitivity: 1.5 ÷ 12 VRMS (47 Ohm-a)
Load impedance (MIN): 2 Ohm-a
Output Power (RMS) @ 14.4 VDC, THD 1%:
1 Ch: 320 W x 1 (4 Ohm-a)
1 Ch: 550 W x 1 (2 Ohm-a)
Output Power (RMS) @ 14.4 VDC, THD 10%:
1 Ch: 380 W x 1 (4 Ohm-a)
1 Ch: 700 W x 1 (2 Ohm-a)
