Hertz

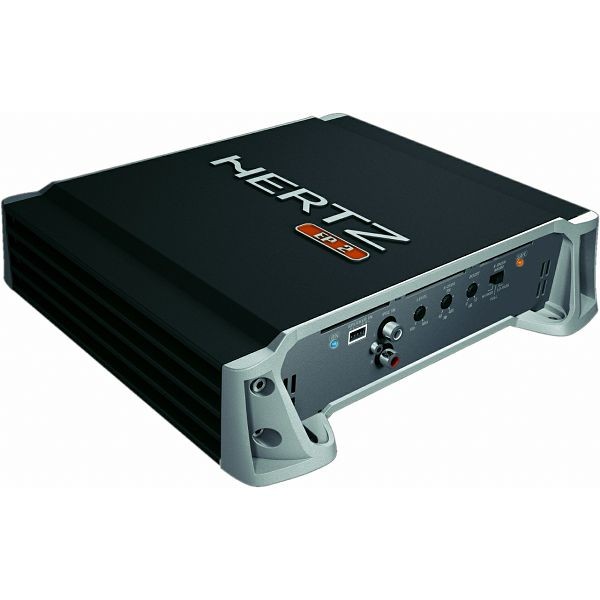

Pojačalo HERTZ ENERGY POWER EP 2

2-kanalno pojačalo snage 190W(RMS), 2 x 60W 4 Ohm, 2 x 95W 2 Ohm, 190 W x 1 (4 Ohm).

Specifikacije(en)
Channel Model: 2 - 1
Output Power (RMS) 14.4 VDC, THD 1%: 60 W x 2 (4 Ohm), 95 W x 2 (2 Ohm), 190 W x 1 (4 Ohm)
Distorsion - THD (100 Hz 4 Ohm): 0.05%
S/N Ratio (A weighted 1V): 100 dbA
Damping factor (100 Hz 4 Ohm): 130
Size (mm): 240 x 230 x 54

Amplifier stage
Distorsion - THD (1k Hz 4Ω): 0.05 %
Bandwidth (-3 dB): 7 60k Hz
S/N Ratio (A weighted 1 V): 100 dB
Damping factor (1k Hz 4Ω): 130
Pre-In sensitivity: 0.3 5 V
Pre-In impedance: 15 kΩ
Speaker-In sensitivity: 1.4 24 V
Speaker-In impedance:5 k?
Load impedance: 2 Ch 2Ω, 1 Ch 4Ω
